Shaper Diamond Technology Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | Infi |
| Model Number : | JSD |
| Certification : | Non Certificate |
| Price : | To be negotiated |
| Payment Terms : | T/T, Western Union, PayPal |
| Supply Ability : | 100pcs/7days |
| Delivery Time : | 7 working days |
Product details:
CVD single crystal diamond properties:
Since CVD diamond does not contain any metal catalysts, its thermal stability is close to that of natural diamond. Like high temperature and high pressure artificially synthesized polycrystalline diamond, CVD diamond grains are also arranged in disorder, without brittle cleavage planes, so they are isotropic.
Using the microwave plasma-assisted chemical vapor deposition method (MPACVD), the microwave resonance system is used to break down the carbon-containing gas and corrosive gas at low and medium pressures to generate plasma, and the growth strategy of the single-crystal diamond crystal model is designed, so that the diamond crystal can be used Homoepitaxial growth is achieved in the 100 and 110 and 111 growth directions of the type IIb diamond seed crystal

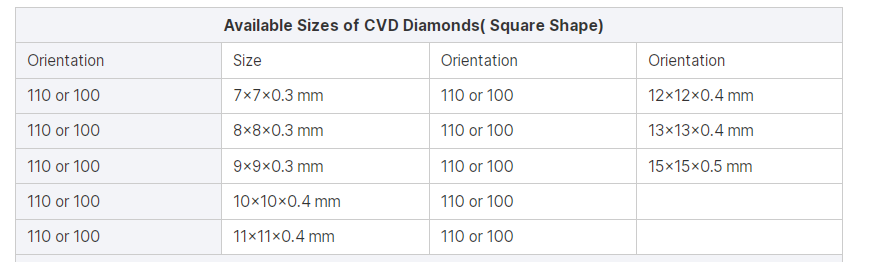

Size Available:
| Suggested application | Sustrated/seeds for single crystal CVD growth |
| Usage | CVD seeds |
| Color | Light brown or colorless |
| Size | 11*11*0.5mm |
| Shape | Four corner Square |
| thickness | 0.5mm |
| Appearance | Smooth and no point |
| Diamond Cut | Good |
| Clarity | VVS |
| Diamond Type | Synthetic (lab created) |
| Diamond Carat Weight | as customise |
| Diamond Enhancements | seeds |
| Material | Synthetic CVD |
| Place of Origin | Hunan, China |
Product Image:
