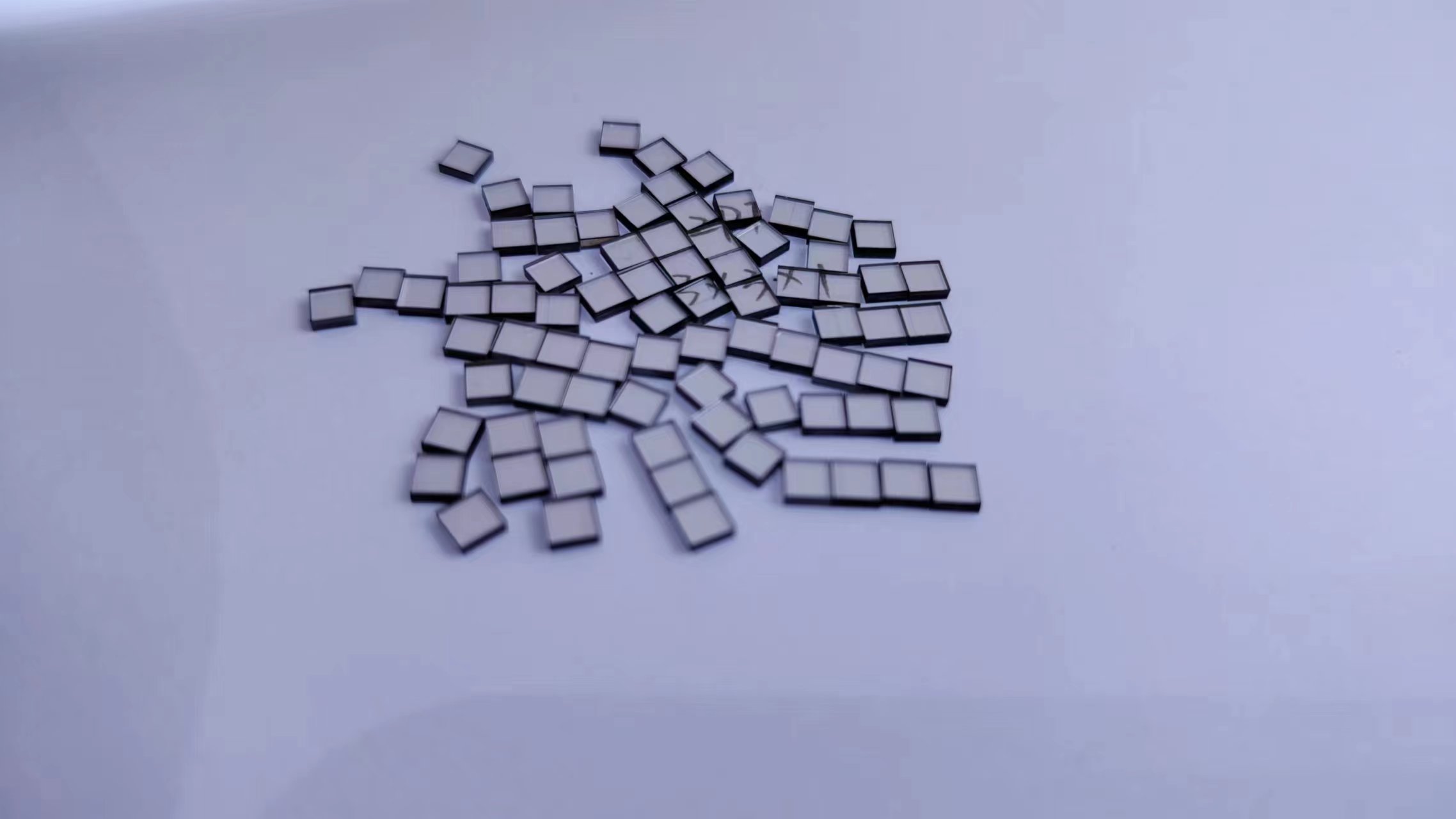

    3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate

    Ask Lasest Price
    Brand Name : Infi
    Model Number : CVD
    Certification : Non Certificate
    Price : To be negotiated
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 100pcs/7days
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    3x3x1mm CVD Lab Grown Diamonds 2PT 110 Single Crystal Diamond Plate

    3x3x1 Mm 2PT 110 Single Crystal Diamond CVD Lab Grown Diamond For Cutting Tools

    Product description:

    Synthetic diamond:
    Synthetic diamond (also referred to as lab grown diamond, lab created diamond, or cultured diamond, man made diamond) is a diamond made of the same material as natural diamonds: pure carbon, crystallized in an isotropic 3D form.
    Single crystal CVD diamond
    The cutting tool made of CVD has excellent performance. It not only has sharp edge, high precision and small cutting force, but also has high hardness, good wear resistance, corrosion resistance and chemical stability.which can meet the requirements of precision and ultra-precision machining on tool materials, and extend the service life of the tool, enabling long-term continuous cutting and reducing the influence of tool wear on the accuracy of parts.


    Product details:

    Crystal growth process:Mono CVD
    Color:Brownish
    Advantage:1) Regular shape, uniform size. The size can be strictly controlled according to customer needs.
    2) High repurchase rate and high cost performance, well received by customers.
    3) No visible growth lines, no black spots, no impurities, no crack.
    Orientation:100 (all 6 planes 100)
    110 (Top and bottom 100)
    2pt/110
    Shape:Retangular
    EdgesLaser Cut
    Laser Kerf3° - 4°
    Lateral Tolerance:+0.1/-0 mm
    Thickness Tolerance+/- 0.05 mm
    Available size1mm - 15mm
    Available thickness0.1- 5mm
    Micro-hardness80-150Gpa
    Young modulus1150-1130Gpa
    Boron Concentration [B]:<0.05 ppm
    Nitrogen Concentration:Mechanical grade 50 ppm - 100 ppm


    Packing and shipping:

    Selling Units:Single item
    Single package size:18X18X10 cm
    Port:Changsha
    Single gross weight:0.500 kg


    Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation

    Transportation: DHL, TNT, Fedex, UPS or as per your request.
